Duco Opal

Duco Opal

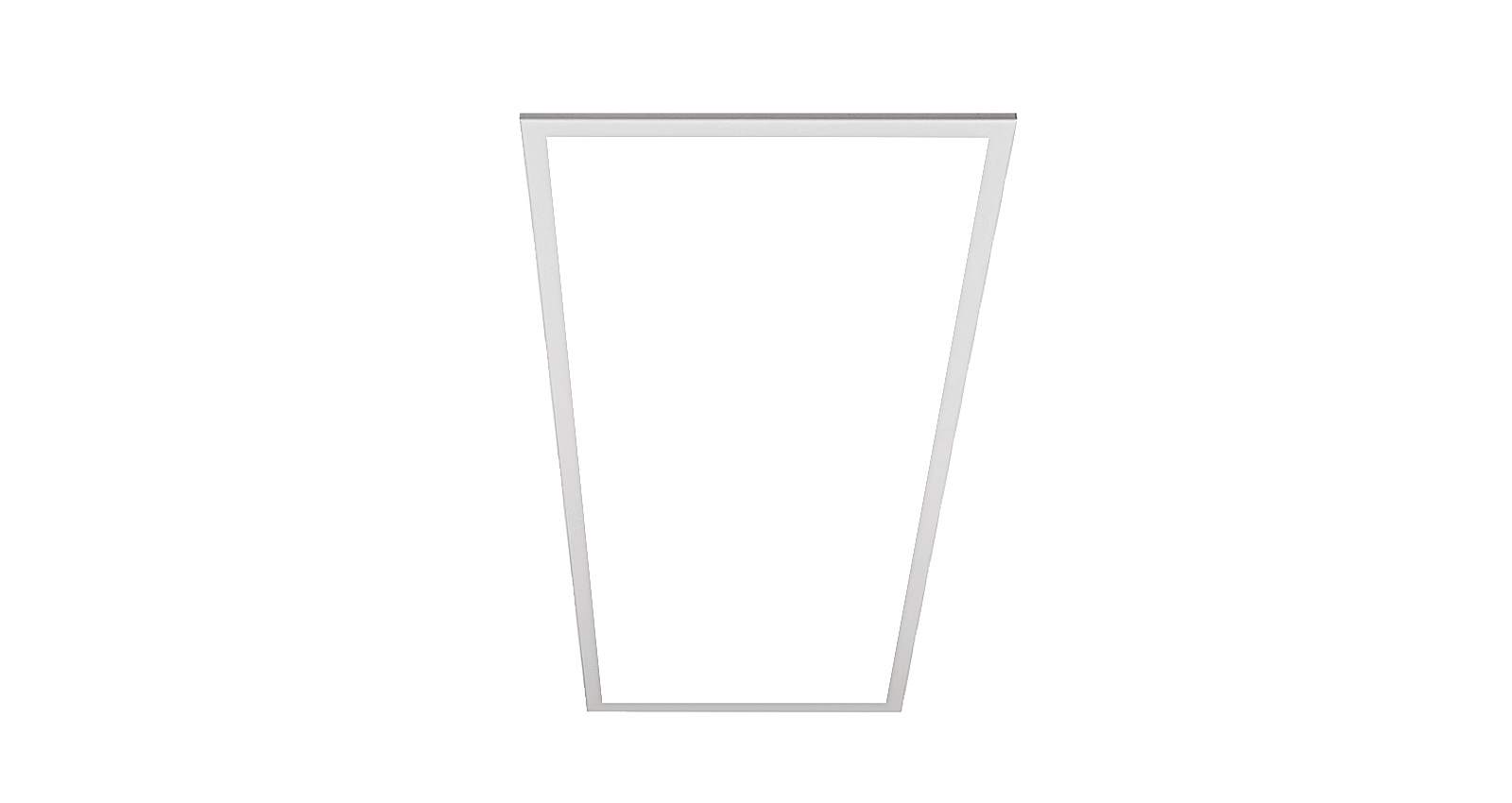

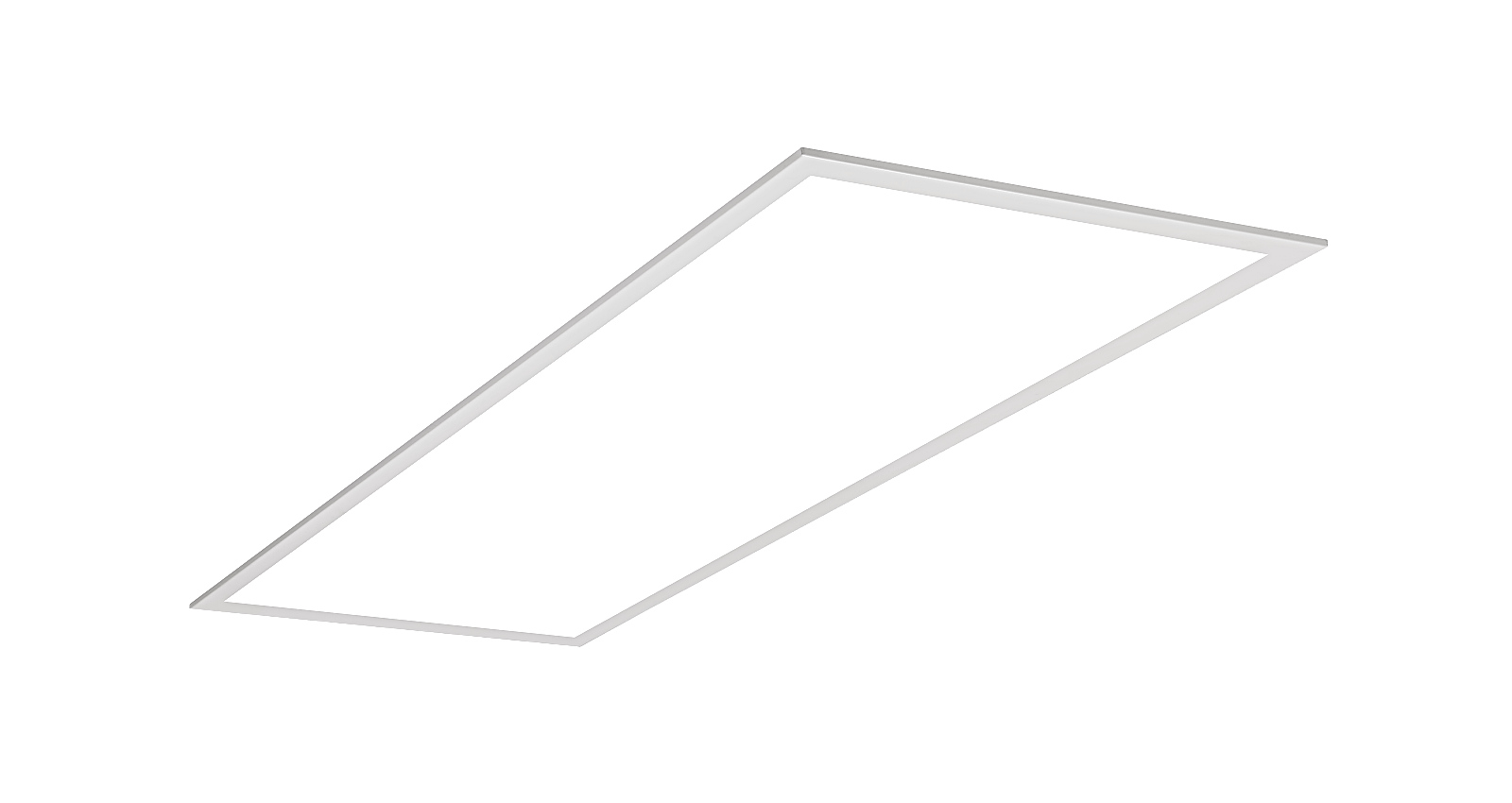

Duco Opal IP65 recessed modular luminaire for cleanroom and kitchen environments. The opal polycarbonate diffuser is sealed within a removable frame with no external visible fixings. The luminaire can be manufactured to fit almost all metal pan and exposed grid ceiling types. Supplied with a prewired detachable gearbox which can be placed adjacent to the fitting in restricted height ceiling voids. Available with a 3 hour emergency back up option.

  • up to 8813 lumen output
  • IP65 sealed backlit opal diffuser
  • Tridonic Dali dimmable control gear
  • 3 hour emergency option

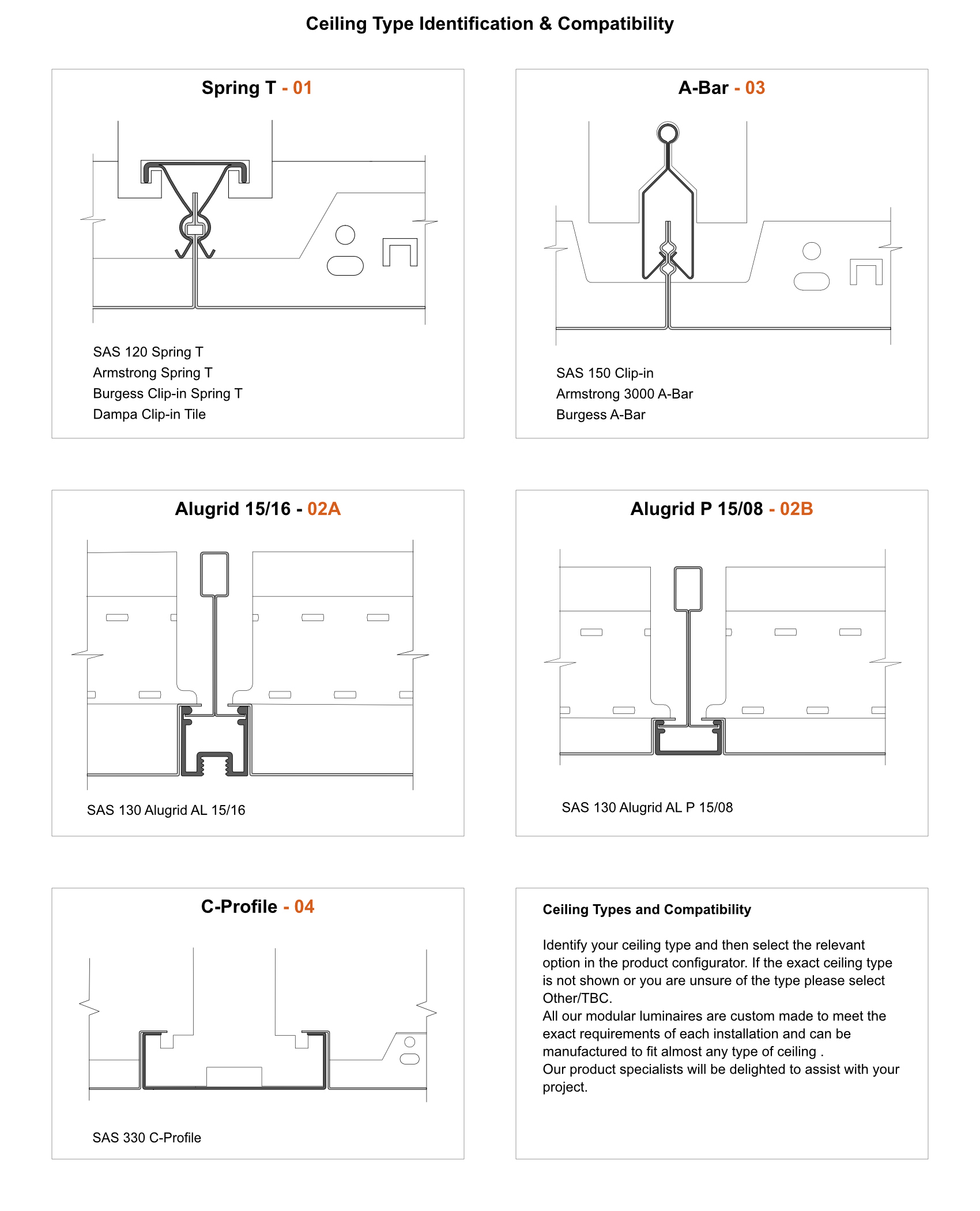

  • bespoke to fit multiple ceiling types
[icon] [icon] [icon] [icon] [icon] [icon] [icon] [icon]

Duco Opal

Specification

Version DCO6-47- DCO6-60- DCO6-73-
Nominal power (W) 47 60 73
LED type Tridonic QLE ADV5
Colour temperature 3000K, 4000K
Colour rendering index Ra>80
Colour consistency 3-step Macadam
Rated service life >72,000h L80/F10 at 60° Max.
Optic Opal
Control gear Integral
IP Rating IP65
Weight (Kg) 13.0

Duco Opal

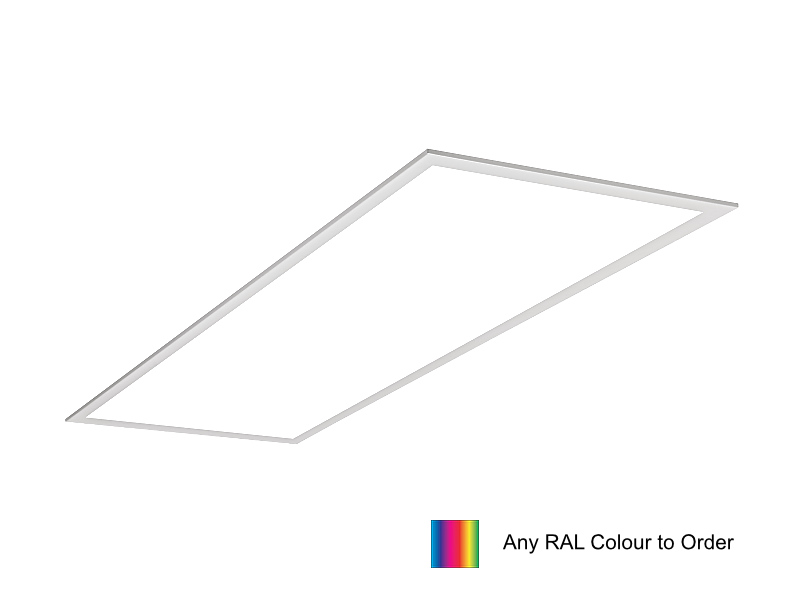

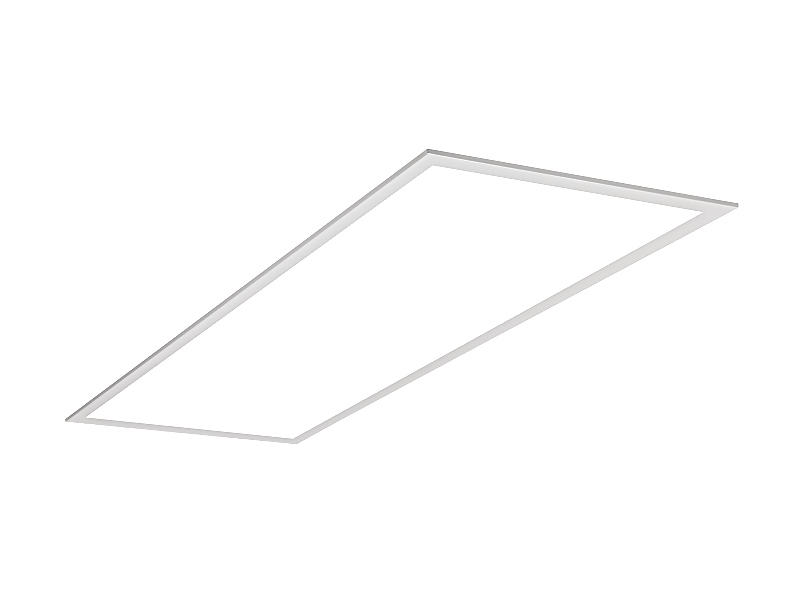

Please select a finish combination option

Finish

[colour option] [colour option]

Duco Opal

Use the product configurator to select the correct product variant, download custom datasheets. For more information, please contact us

Product Code:

DCO6-_-_-_-_-_-_ View Datasheet

Downloads

download datasheet Datasheet
