E11

E11

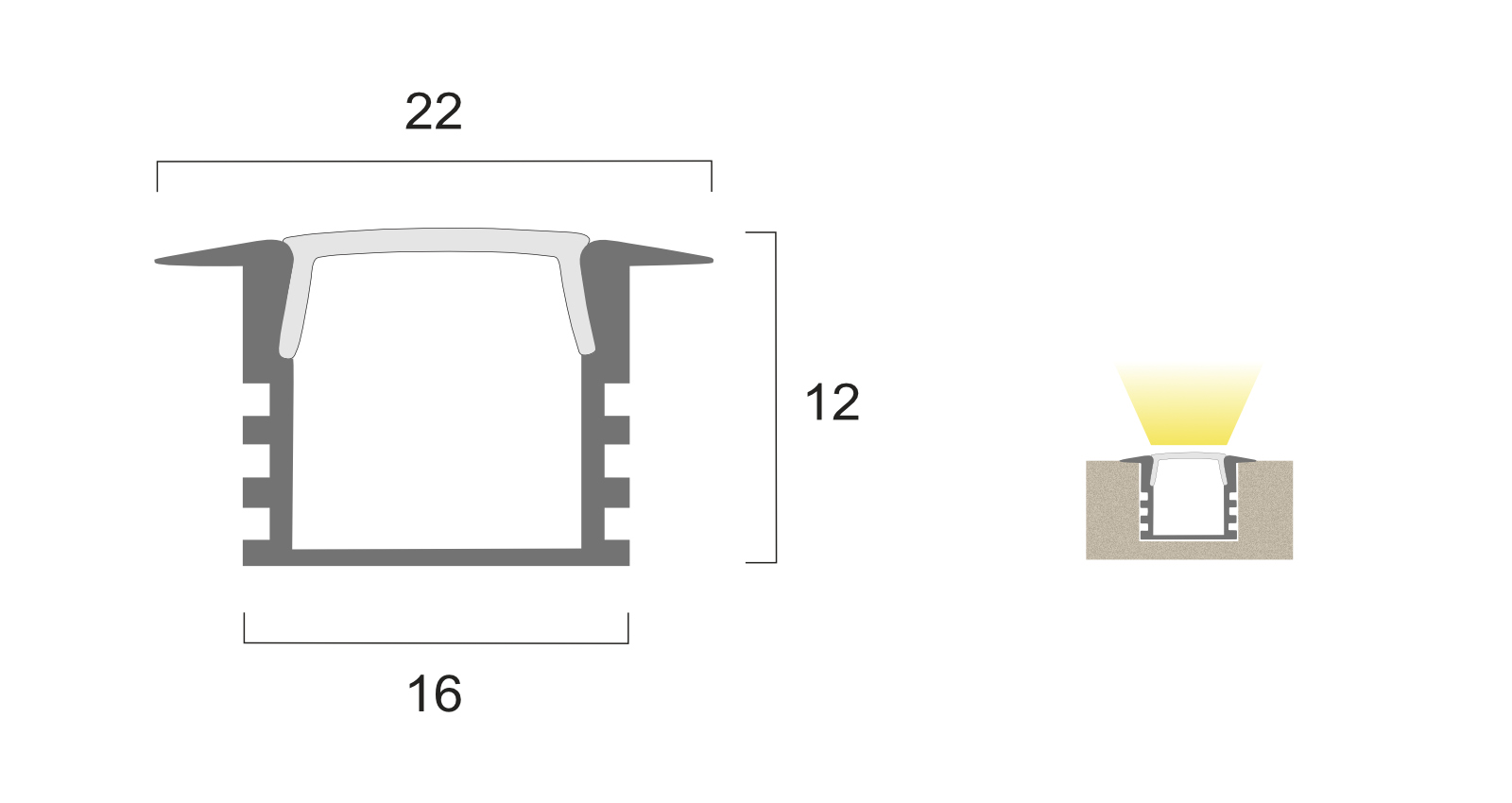

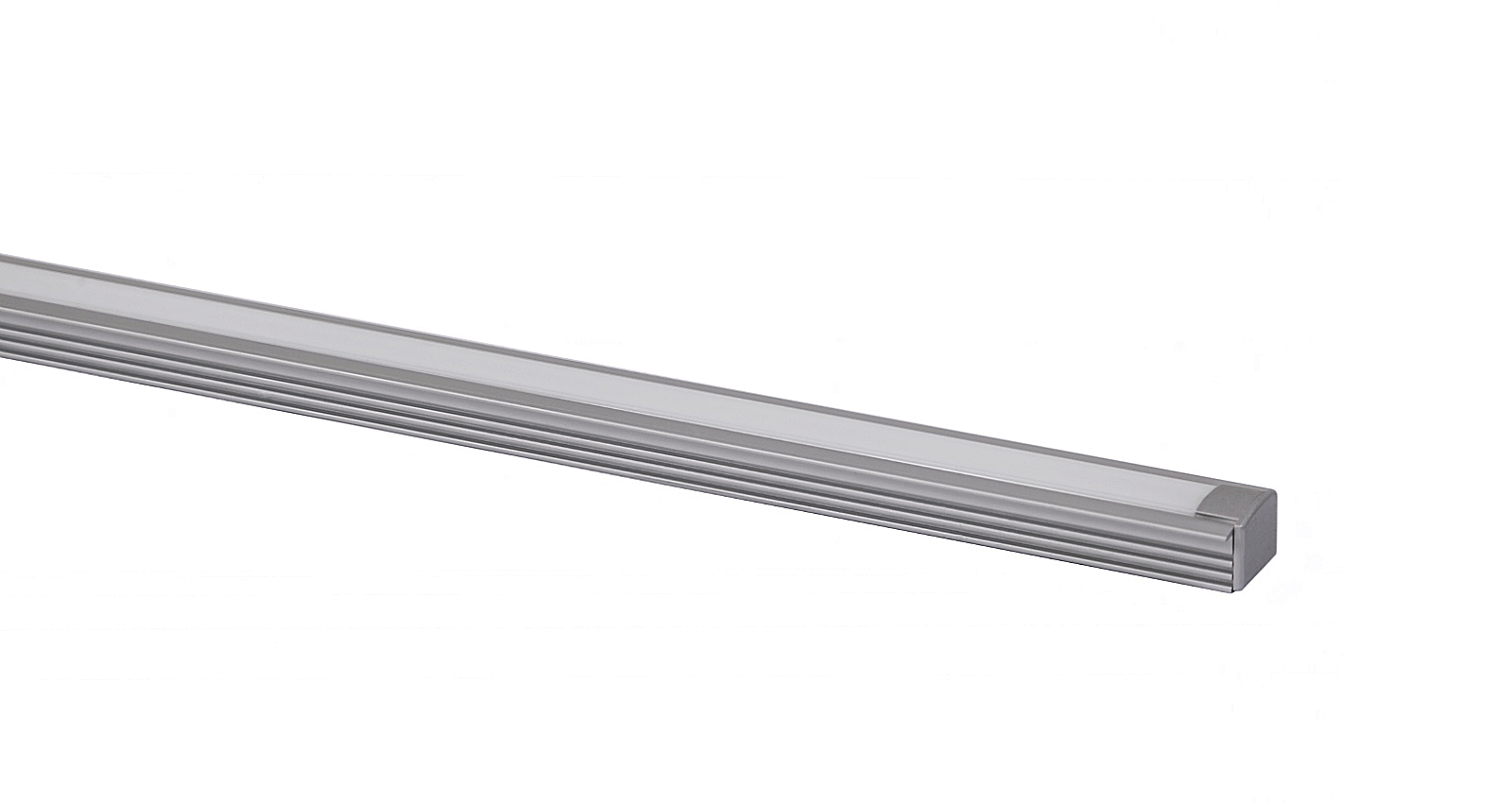

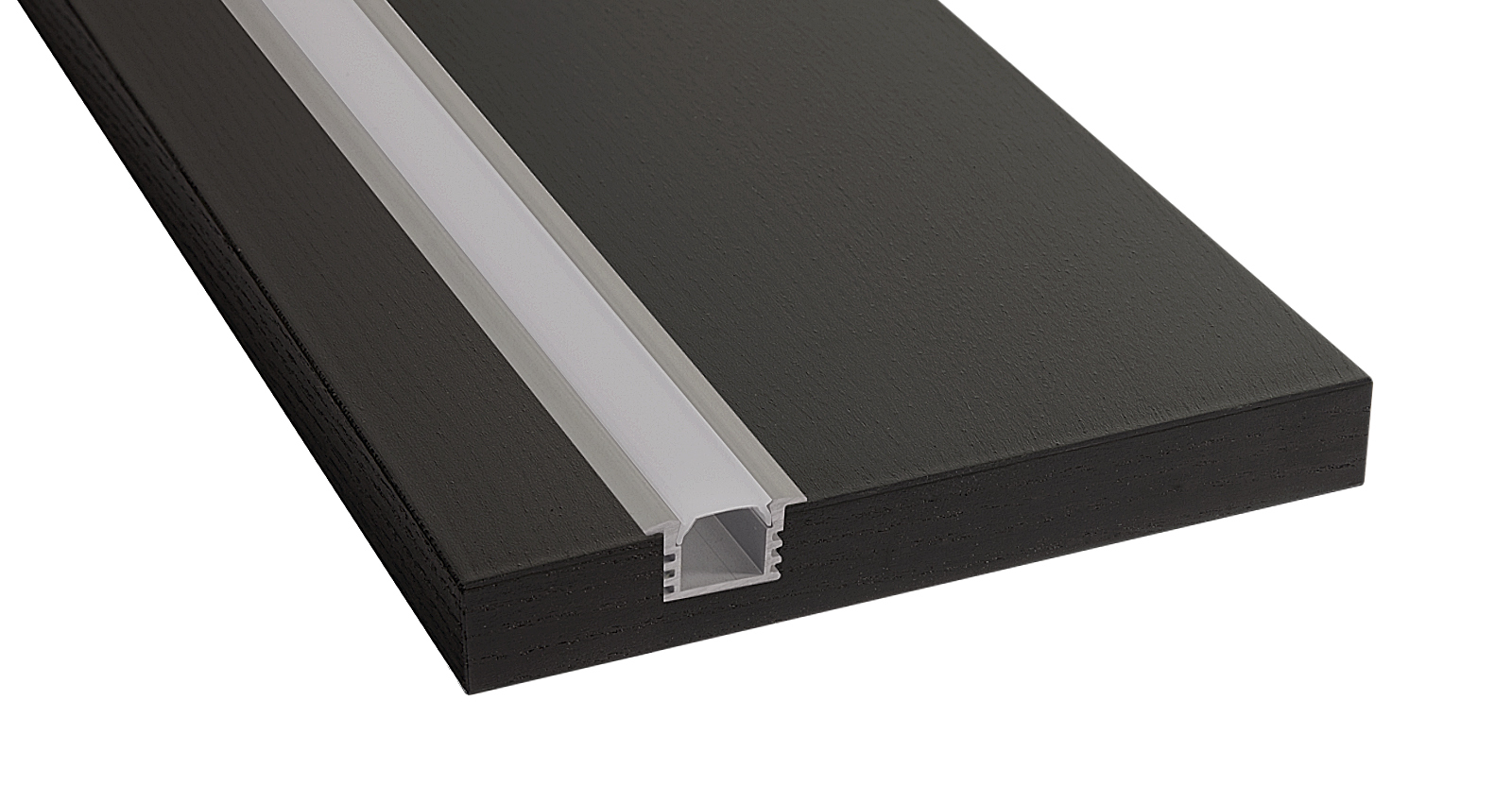

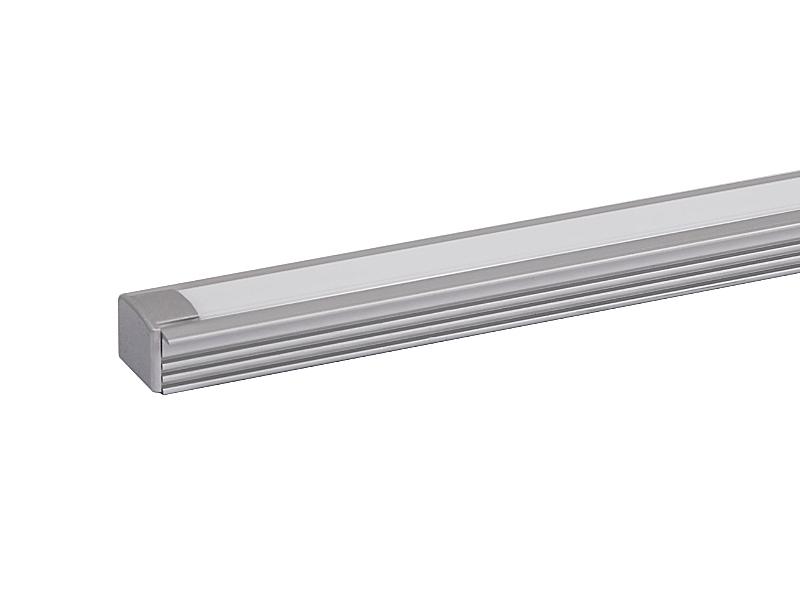

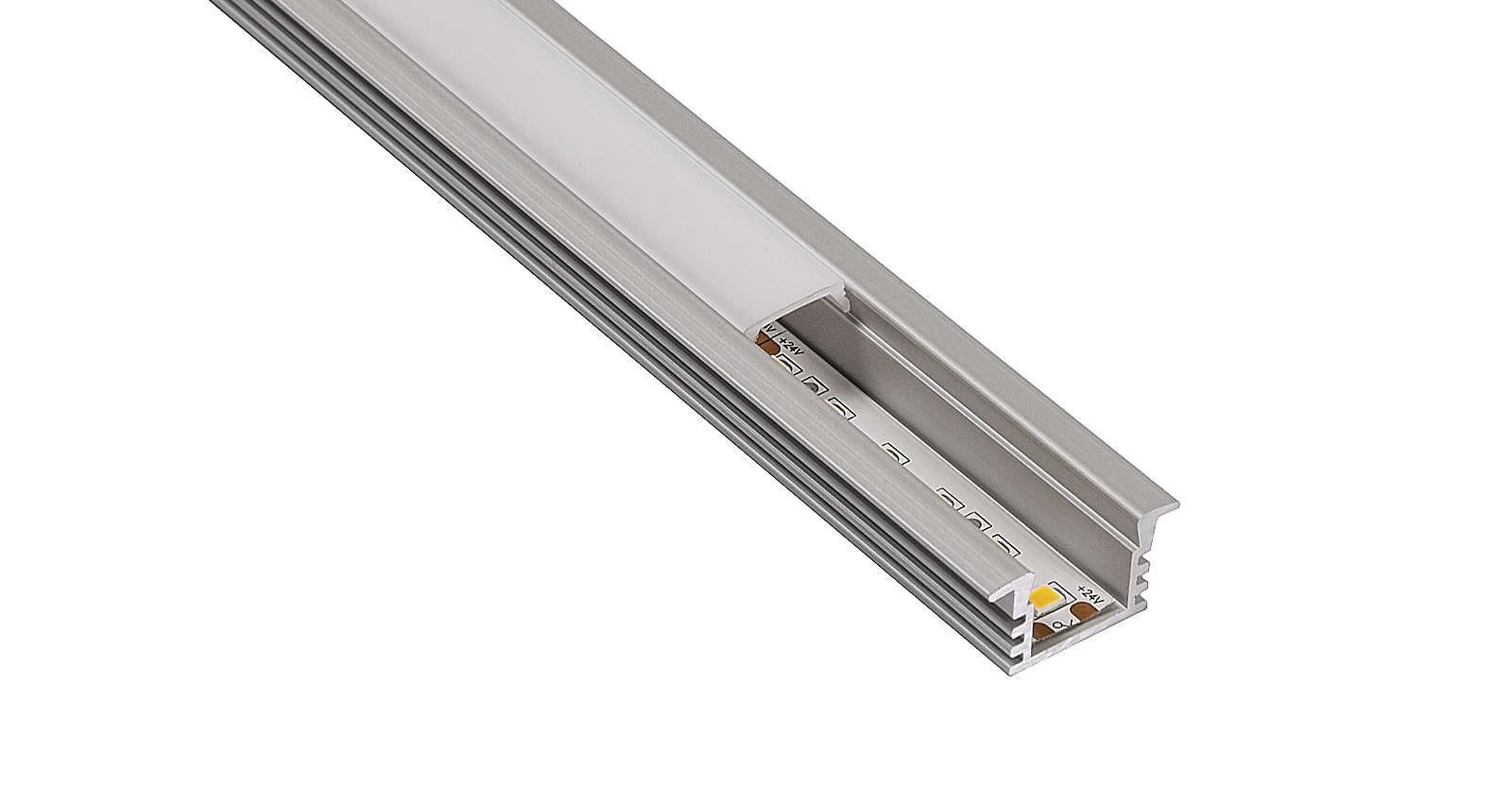

Made to measure recessed flanged LED linear system offered in 3 light output levels. The aluminium extrusion acts as a heat sink maximising performance and life of the LED strip. Opal diffuser ensures constant light without spotting or shadow lines. The clear diffuser maximises output for concealed mounting options. Supplied with remote control gear.

  • up to 1125 lumen/m output
  • continuous uniform light
  • Samsung single bin chip
  • 4 oz PCB for optimum heat dissipation
  • phase, 1-10V, or Dali dimmable
[icon] [icon] [icon] [icon] [icon] [icon] [icon] [icon] [icon]

E11

Specification

LED type Samsung LM281B tape
CRI 80+
Bin code Single bin
LED lifetime 50,000hrs L70
Control gear Remote (included)
IP rating IP20

E11

Please select a finish combination option

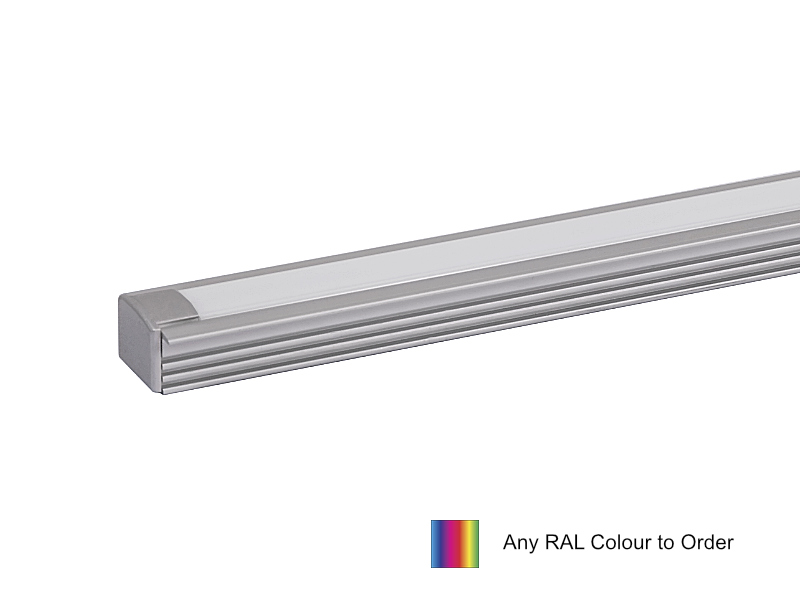

Finish

[colour option] [colour option]

E11

Use the product configurator to select the correct product variant, download custom datasheets. For more information, please contact us

Power
Diffuser
CCT (°K)
Finish
Length

Product Code:

E11-_-_-_-_-_-_ View Datasheet

Downloads

download datasheet Datasheet
