E20

E20

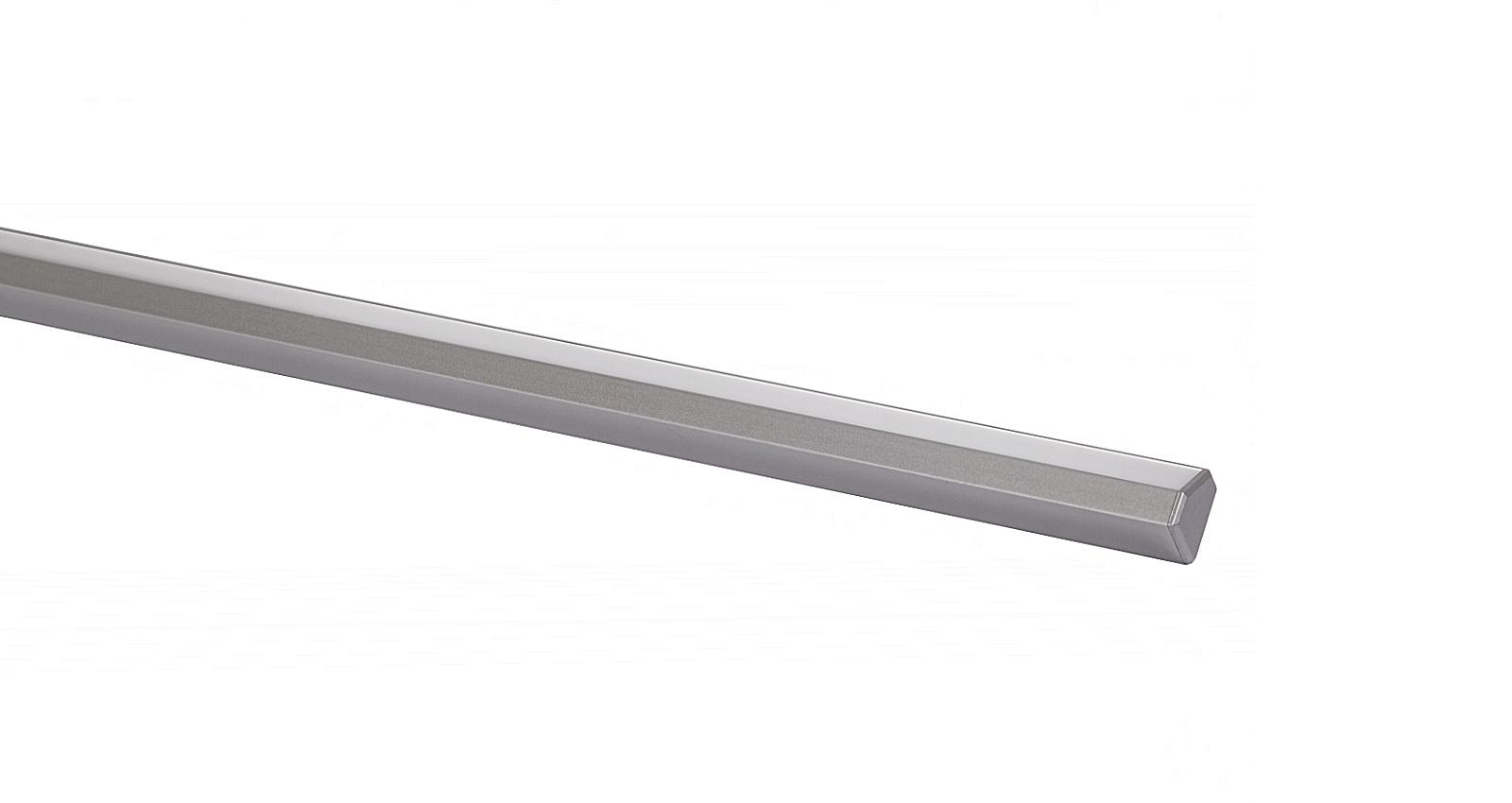

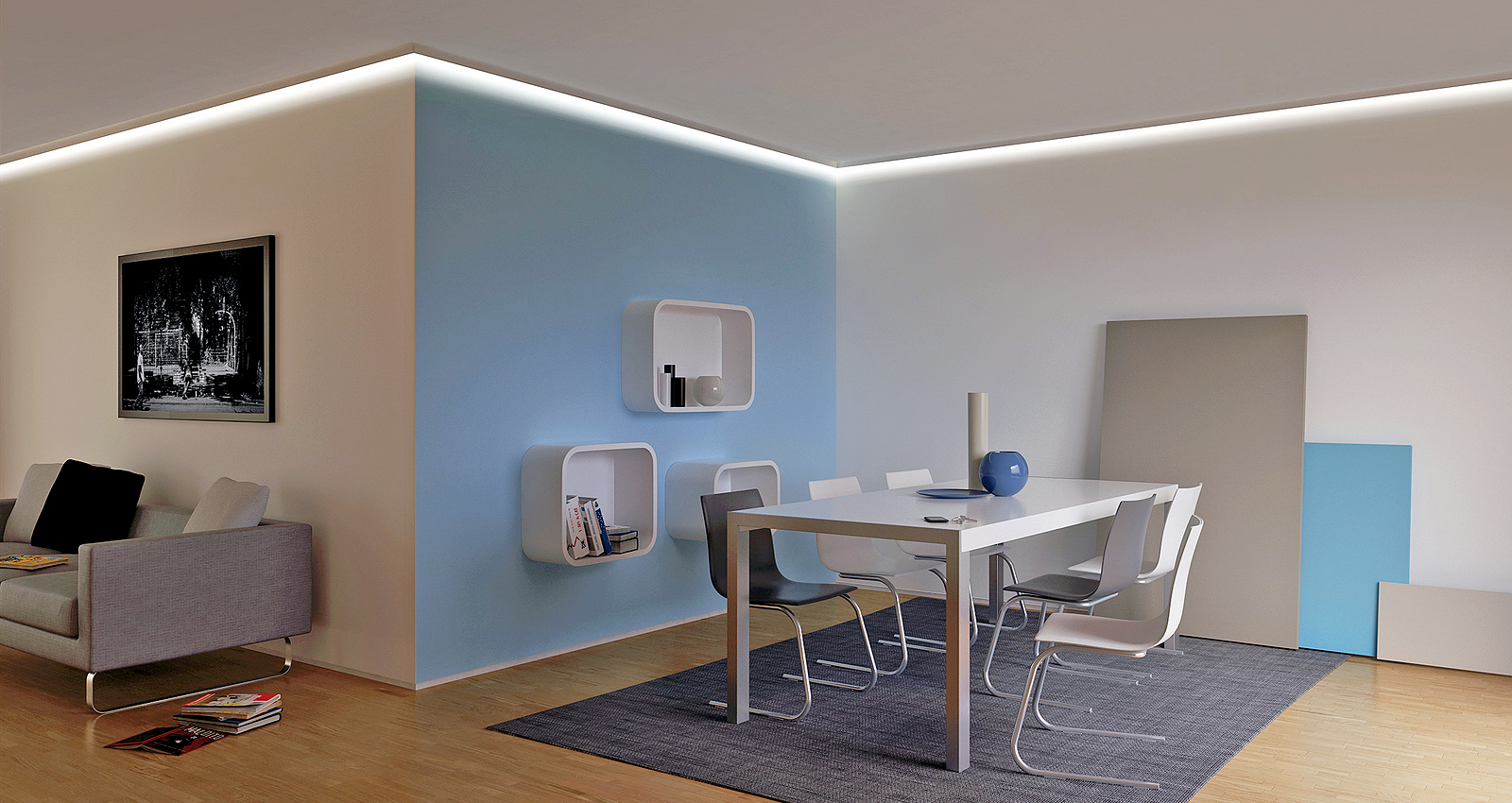

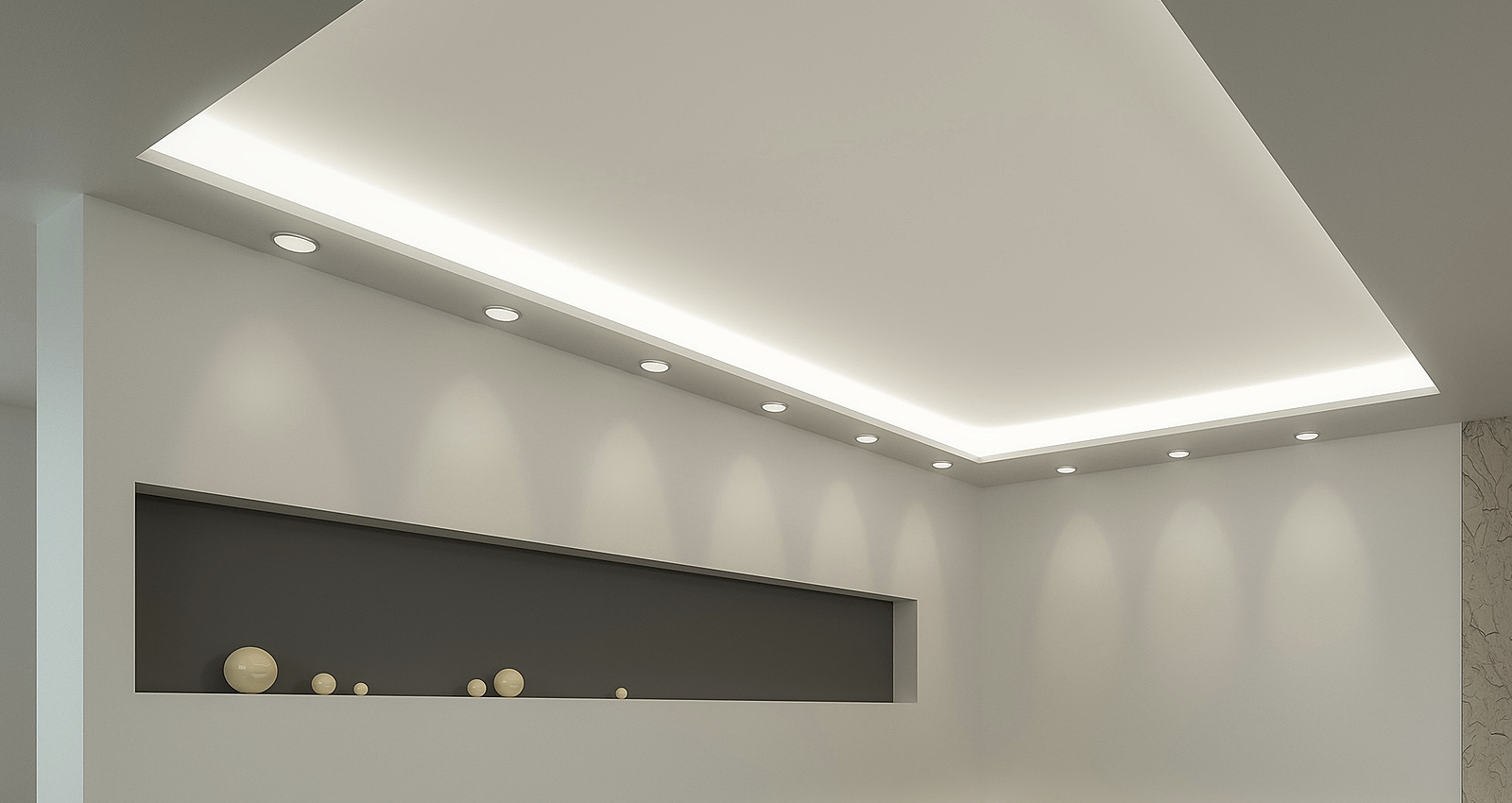

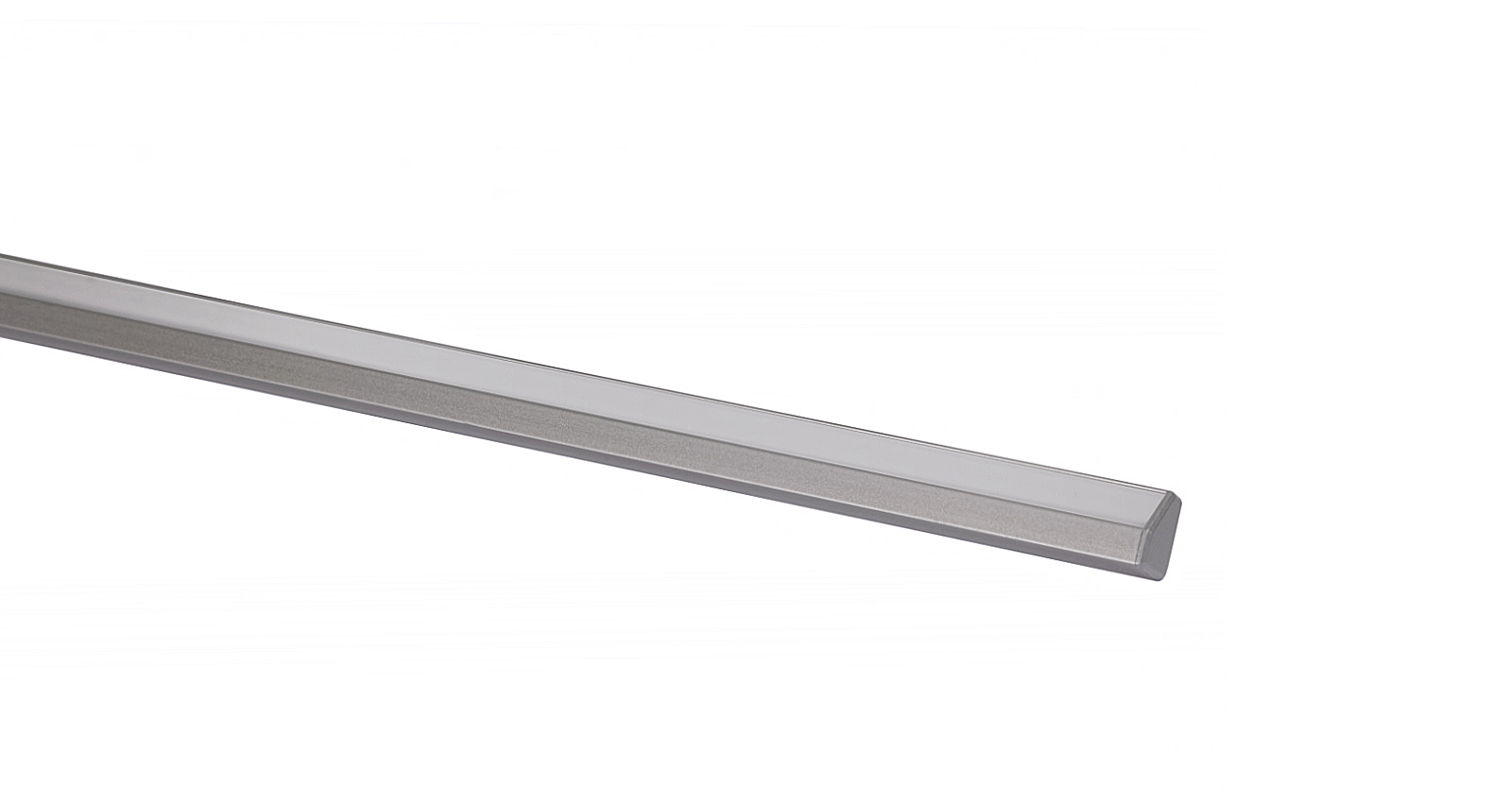

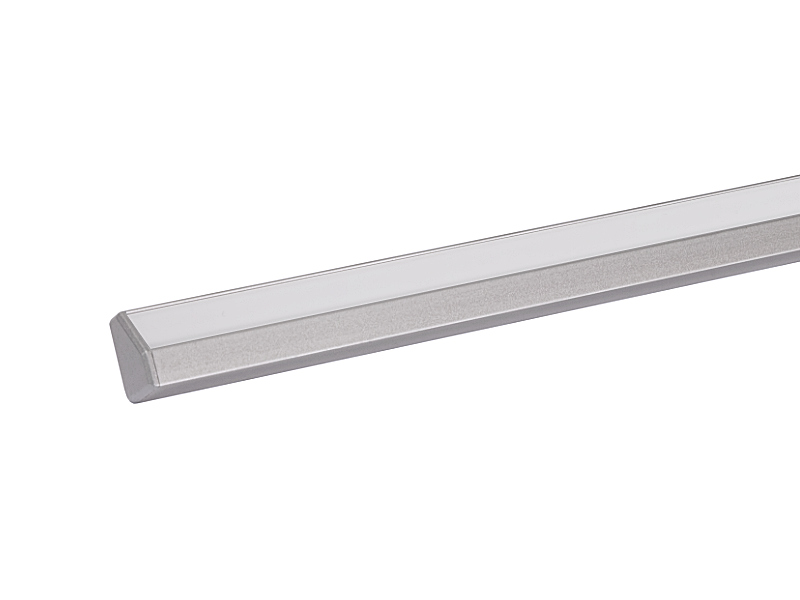

Made to measure surface mounted LED linear system offered in 3 light output levels. The 45Ëš angled extrusion gives a symmetrical medium angle light distribution and is ideal for cove lighting or corner applications. The opal diffuser ensures continuous uniform light without spotting or shadow lines. Supplied complete with remote gear.

  • up to 1188 lumen/m output

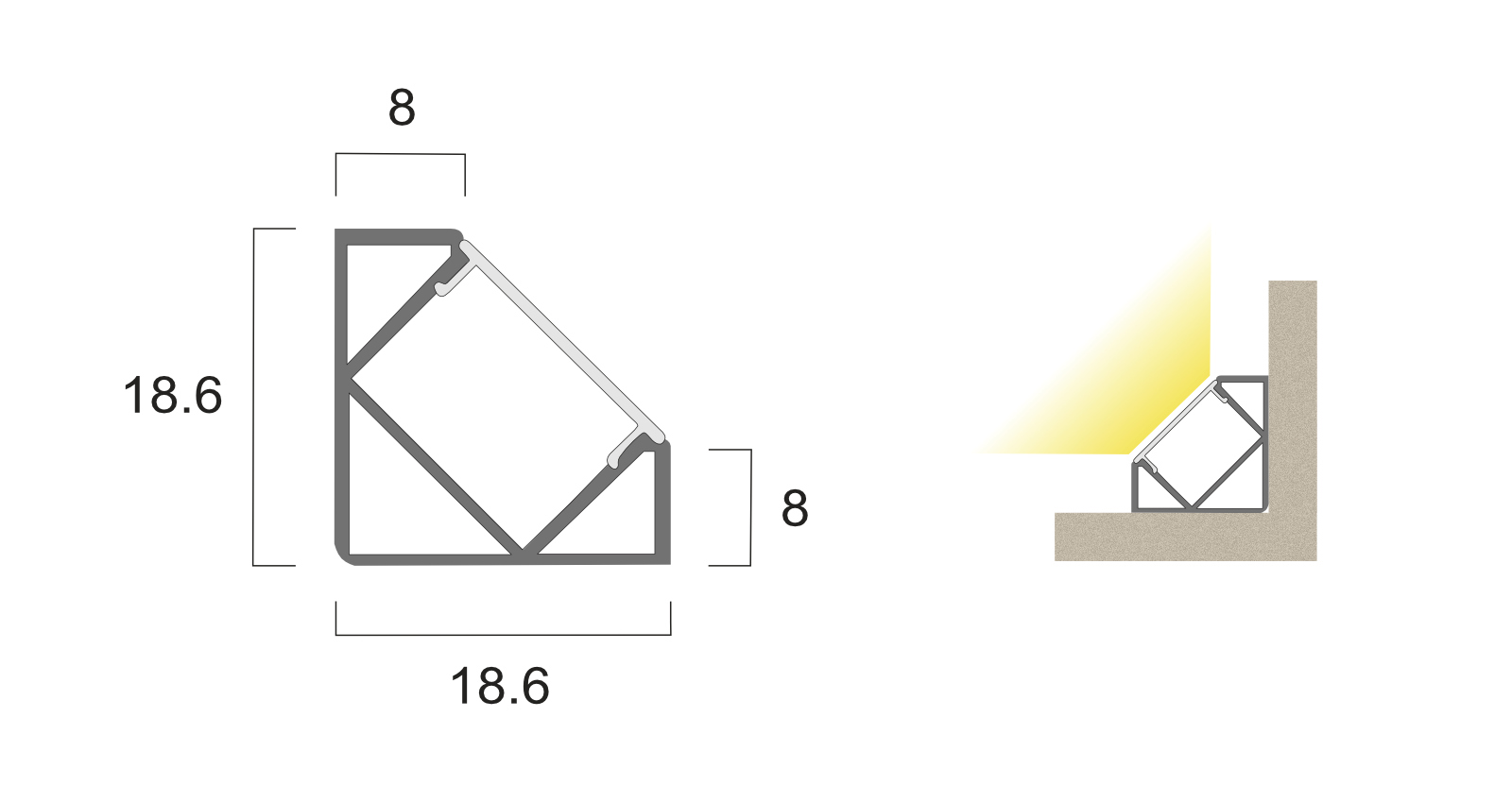

  • 45Ëš angled extrusion
  • continuous symmetrical uniform light
  • Samsung 4 oz PCB for optimum heat dissipation
  • phase, 1-10V or Dali dimmable
[icon] [icon] [icon] [icon] [icon] [icon] [icon] [icon] [icon]

E20

Specification

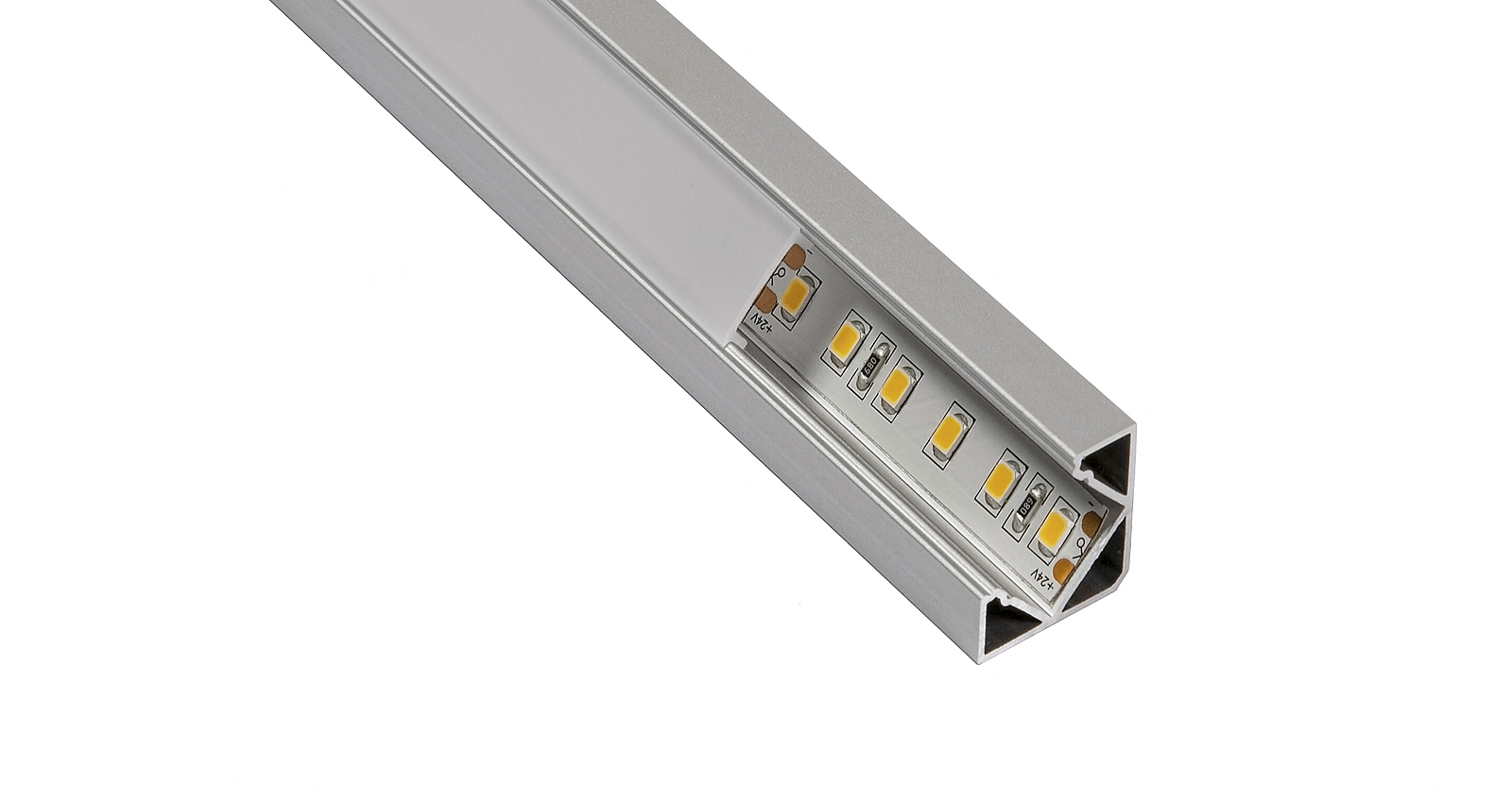

LED type Samsung LM281B tape
CRI 80+
Bin code Single bin
LED lifetime 50,000hrs L70
Control gear Remote (included)
IP rating IP40

E20

Please select a finish combination option

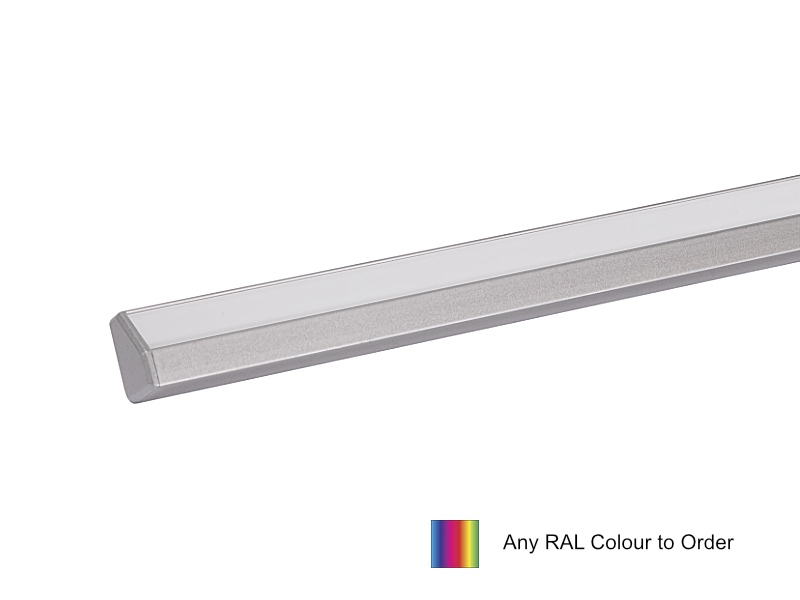

Finish

[colour option] [colour option]

E20

Use the product configurator to select the correct product variant, download custom datasheets. For more information, please contact us

Power
Diffuser
CCT (°K)
Finish
Length

Product Code:

E20-_-_-_-_-_-_ View Datasheet

Downloads

download datasheet Datasheet
