E35 Surface

E35 Surface

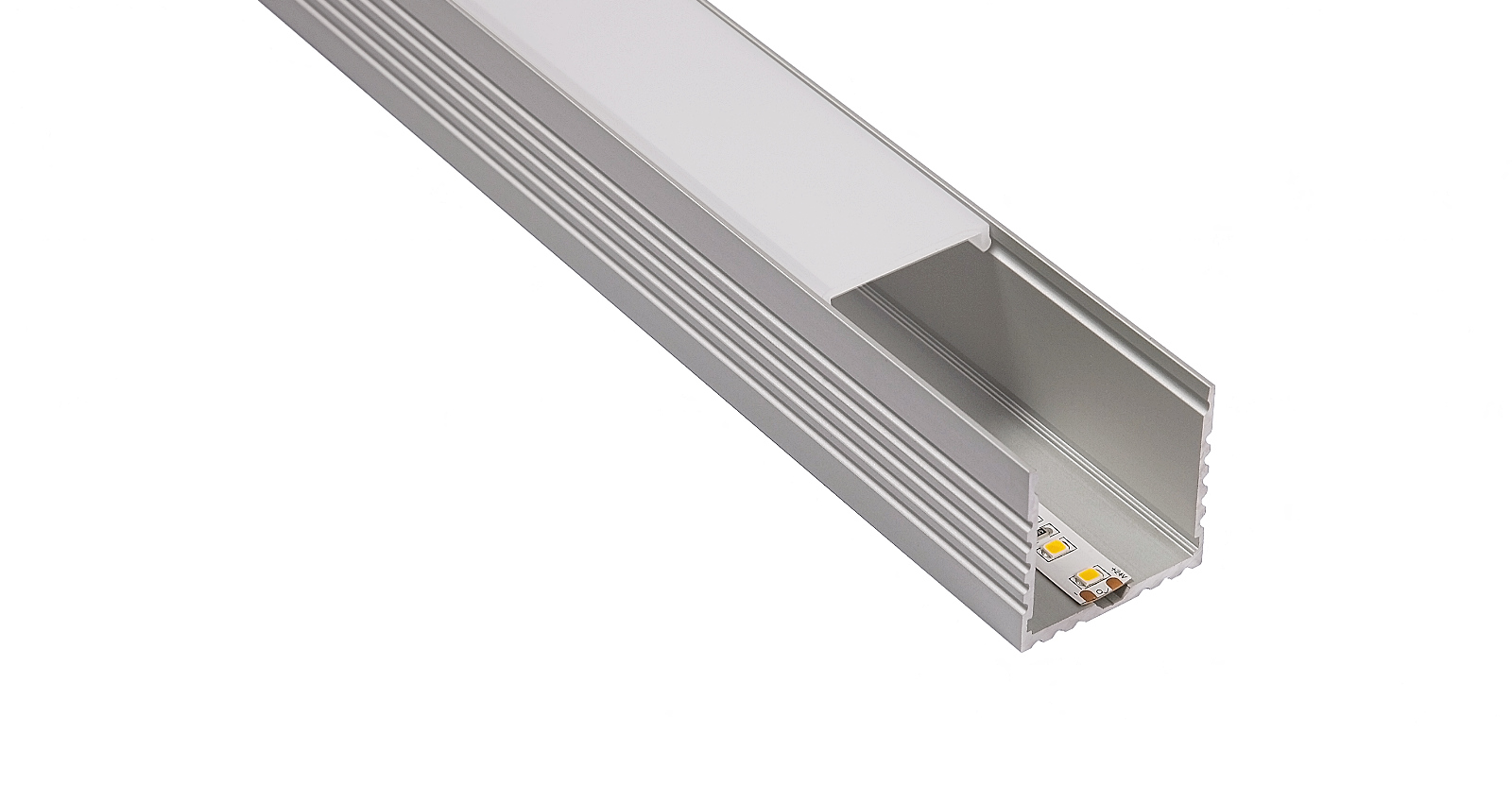

Linear aluminium LED extrusion suitable for surface mounting and offered in 3 light output levels. The aluminium extrusion acts as a heat sink maximising performance and life of the LED strip, the extrusion can also be supplied in made to measure lengths. An opal diffuser ensures constant illumination without spotting or shadow lines. Suppied with remote control gear.

up to 1086 lumen/m output
continuous wide symmetrical light output
Samsung single bin chip
4 oz PCB for optimum heat distribution
phase, 1-10V or Dali Dimmable

E35 Surface

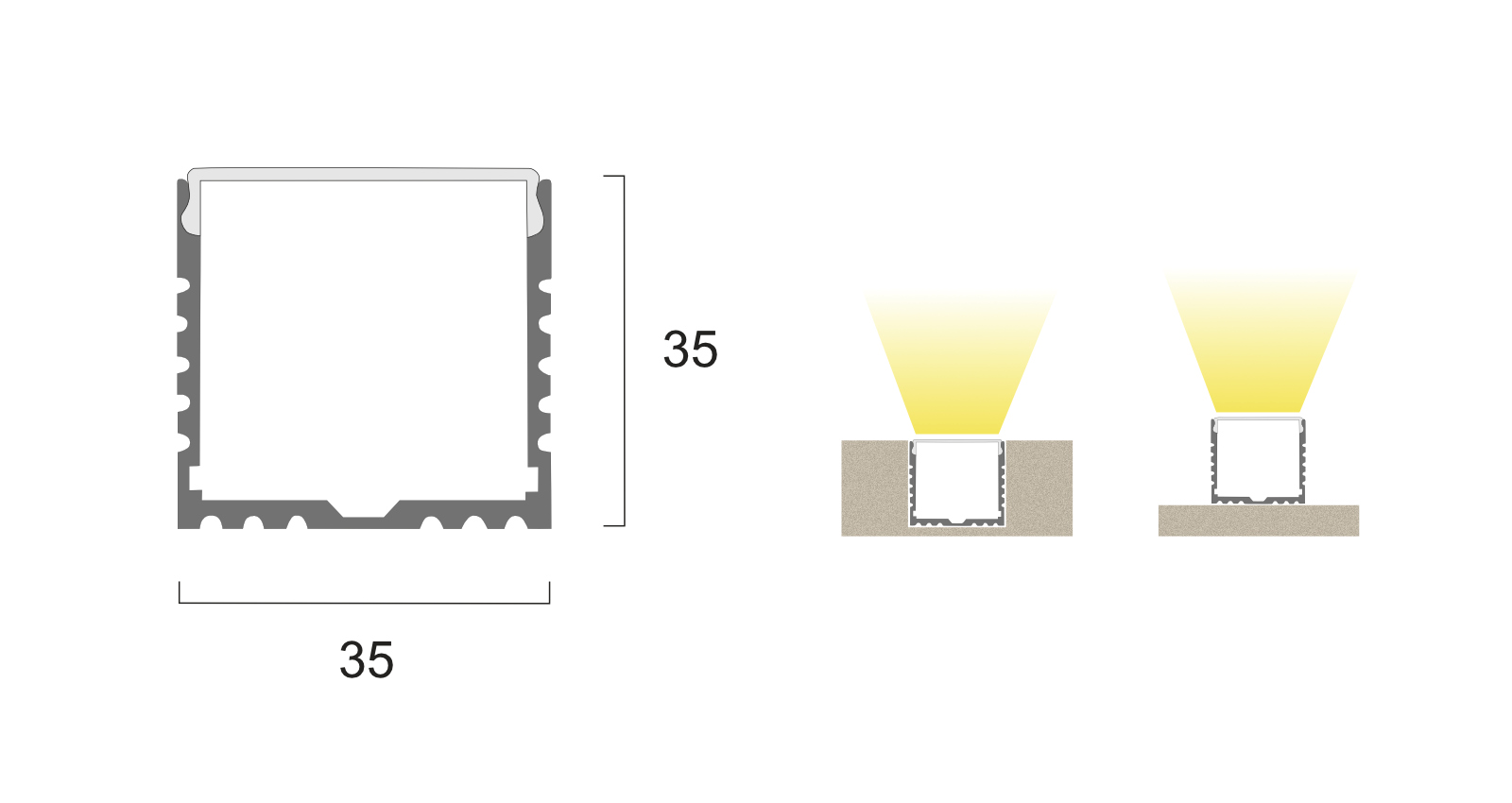

[dimension drawing option]

E35 Surface

Specification

LED type	Samsung LM281B tape
CRI	80+
Bin code	Single bin
LED lifetime	50,000hrs L70
Control gear	Remote (included)
IP rating	IP40

E35 Surface

Please select a finish combination option

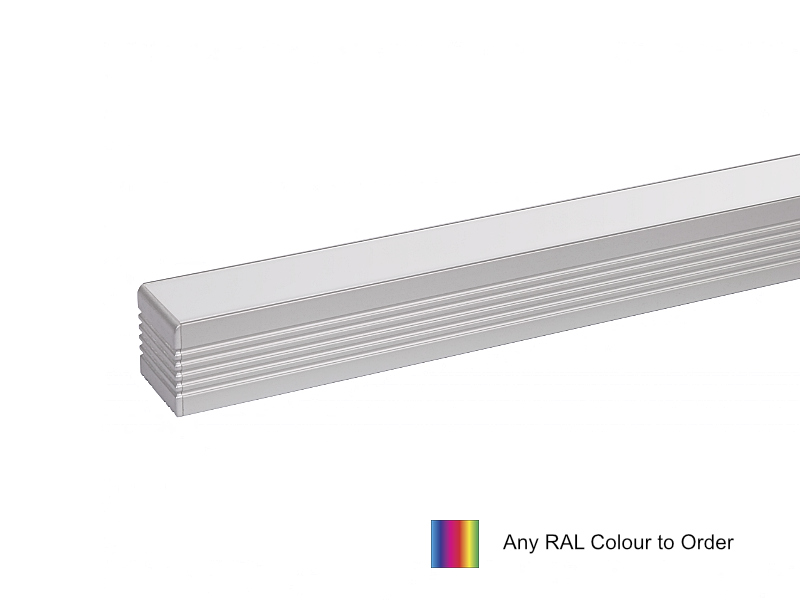

Finish

[colour option]

[colour option]

E35 Surface

Use the product configurator to select the correct product variant, download custom datasheets. For more information, please contact us

Power

Diffuser

CCT (°K)

Finish

Length

Driver

Product Code:

E35-_-_-_-_-_-_ View Datasheet

Downloads

download datasheet
